The CNC pipe bending equipment uses servo and hydraulic drives with centralized control for precise bending, supporting both mandrel and non-mandrel bending, and is widely used in shipbuilding, boilers, chemicals, and automotive manufacturing.

CNC Affordable Pipe Bending Equipment

● Servo and Hydraulic Drive: Combines servo and hydraulic drives for efficient and precise operation.

● Centralized Electrical Control: Controls bending angle, feeding accuracy, and tube rotation with high precision.

● Hydraulic Control: Independent hydraulic cylinders for clamping, guiding, mandrel, and other functions, ensuring smooth and synchronized performance.

● Bending Versatility: Supports both mandrel and non-mandrel bending for various types of metal pipes.

● Easy Operation: Features jog and single-action modes, making it easy to use and maintain.

● Wide Application: Widely used in industries such as shipbuilding, boilers, chemicals, and automotive manufacturing.

Tube pipe bending machine with PLC or IPC which manages Feeding (Y), Rotate (B) & Bending (C) in a complete automatic cycle.

Feeding (Y-Axis): Controlled by Servo motor.

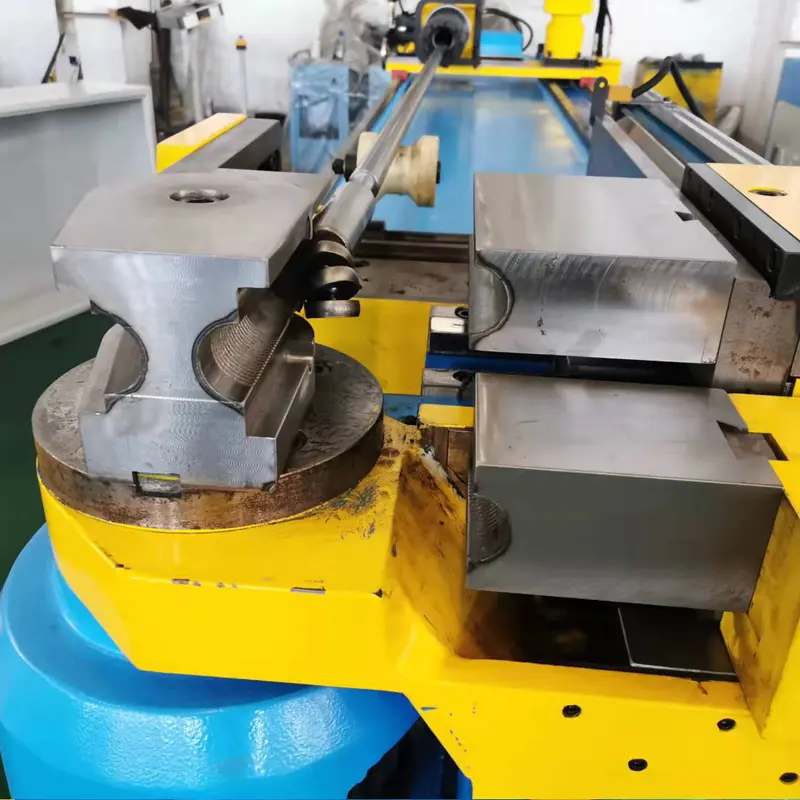

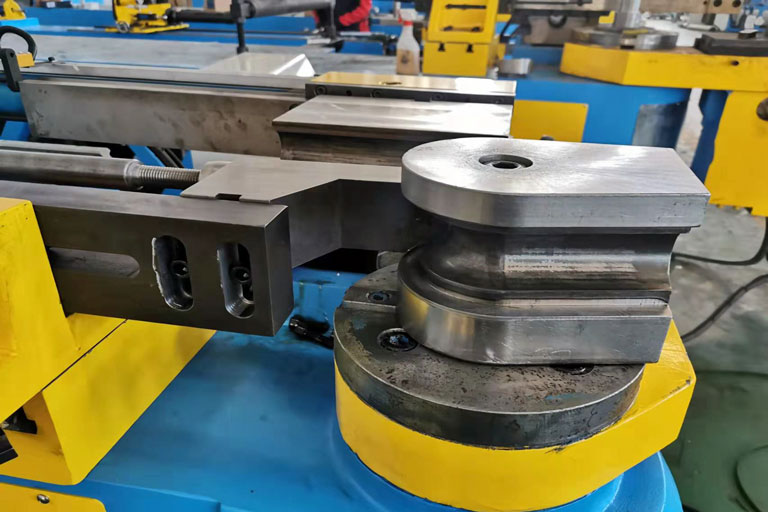

● Fully hydraulic movement on clamp die, pressure die, and mandrel.

● Available pipe material: steel, stainless, aluminum, titanium, and brass...

● Available pipe shape: Round, Square, Rectangle, Oval, Solid Bar, other profiles...

● Equipped with Japan Omron encoder ensures the accuracy and stability of bending.

We only use world-famous, popular-quality components in the production of our tube pipe bending machine: Japan Mitsubishi Servo, Hydraulic Germany Rexroth, Electrical France Schneider, Seal ring Japan NOK, CNC Controller Siemens or Japan Mitsubishi, and so on.

Ensure efficient and precise operation during the bending process to meet various processing needs.

Europe design structure with higher precision and speed. keep the machine used for a long time.

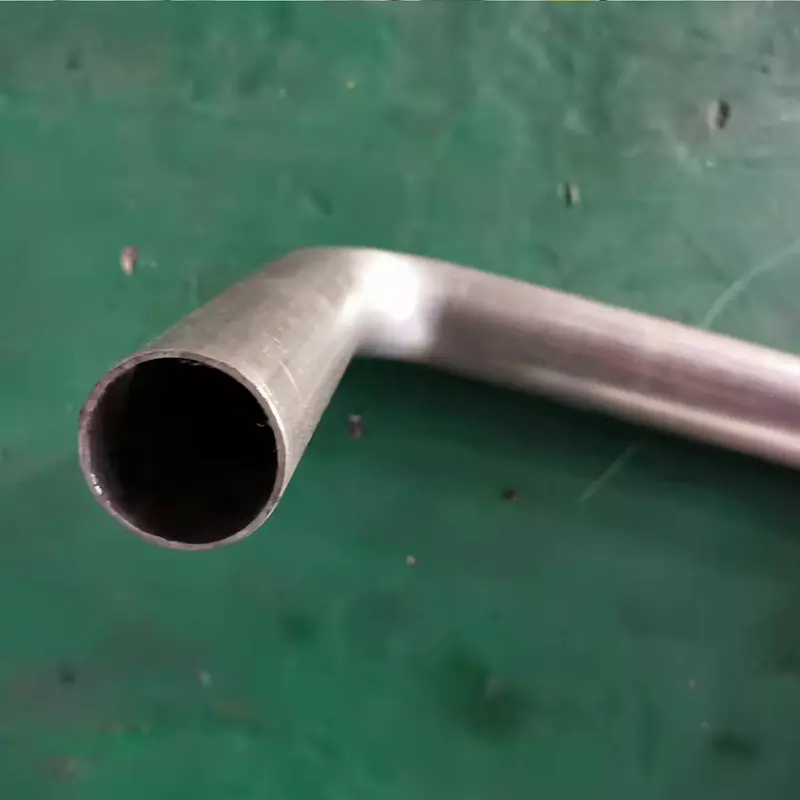

Our affordable CNC pipe bending equipment offers high precision, flexible processing capabilities, and superior surface finishing, meeting the diverse material and product requirements to ensure high-quality finished products.

Specification

NO.	Name		Unit	Parameters	Mark
1	Max Processing Pipe Size		mm	Φ75×3t	Carbon steel
2	Max Bending radius		mm	R300	Customized
3	Min Bending radius		mm	According to OD
4	Max feeding length		mm	3000	Customized
5	Feeding method			1. Direct feeding 2. Clamping feeding	optional
6	Max bending angle		Degree	190
7	Using controller			PLC	Customized
8	Number of bends per fitting		个	30
9	Working speed	bending	Deg/sec	70	adjustable
		rotating	Deg/sec	100	adjustable
		feeding	Mm/sec	600	adjustable
10	accuracy	feeding	mm	±0.1
		rotating	Degree	±0.1
		bending	Degree	±0.1
11	Rotating servo motor		Kw	1	Japan Mitsubishi
12	Feeding servo motor		Kw	2	Japan Mitsubishi
13	Data input mode			1、Coordinate value（X、Y、Z） 2、Working value（Y、B、C）	optional
14	Hydraulic motor horsepower		Kw	7.5
15	Maximum pressure		MPa	14	adjustable
16	Hydraulic system control			Solenoid directional valve	Taiwan's Seven Oceans
17	Fuel tank capacity		L	250
18	Machine weight		Kg	4500
19	Machine size		cm	520×1350×1230
