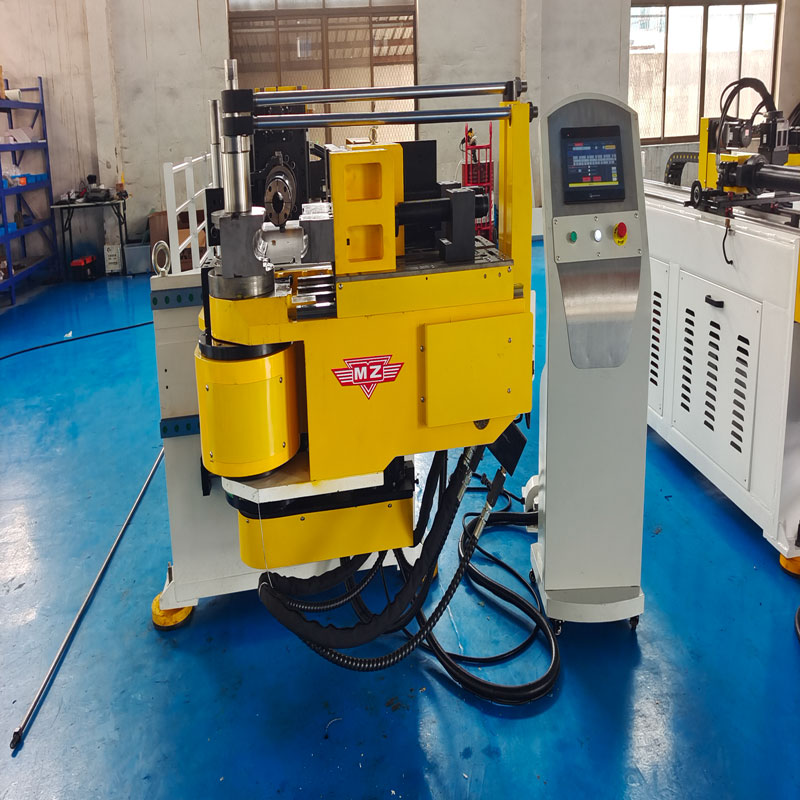

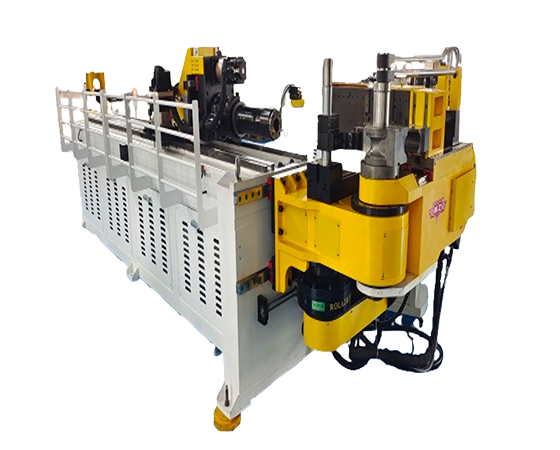

CNC Auto Tube Bending Machines | MZ75CNC-4A-2S

Tube bending machines with PLC or IPC, which manage Feeding (Y), Rotating (B) & Bending (C) in a complete automatic cycle.

Feeding (Y-Axis): Controlled by Servo motor.

Feeding (Y-Axis): Controlled by Servo motor.

Feeding (Y-Axis): Controlled by Servo motor.

● Fully hydraulic movement on clamp die, pressure die, and mandrel.

● Available pipe material: steel, stainless, aluminum, titanium, and brass...

● Available pipe shapes: Round, Square, Rectangle, Oval, Solid Bar, and other profiles.

● Equipped with a Japan Omron encoder, which ensures the accuracy and stability of bending.

Ensure efficient and precise operation during the bending process to meet various processing needs.

● Industry computer(IPC) touch screen 10inch/15inch offers easy access to automatic and manual operating modes.

● System diagnostics and multiple language capability.

● Fully hydraulic clamping on the clamp die and the pressure die.

● Equipped with an adjustable speed valve on the pressure die ensures the synchronization of bending.

● 3D Simulation Function and Drawing Transfer Function
Wifi connection, and remote monitoring

We only use world-famous, popular-quality components in the production of our tube bending machines: Japan Mitsubishi Servo, Hydraulic Germany Rexroth, Electrical France Schneider, Seal ring Japan NOK, CNC Controller Siemens or Japan Mitsubishi, and so on.

The hydraulic and pneumatic drive system of the tube bending machines is responsible for powering the movement and bending of pipes. Through connected hydraulic or pneumatic cylinders, it delivers the necessary force for precise pipe processing during bending operations.
