The rectangular tube bending machine offers CNC-controlled, high-precision automated bending with hydraulic drive for efficient and consistent performance.

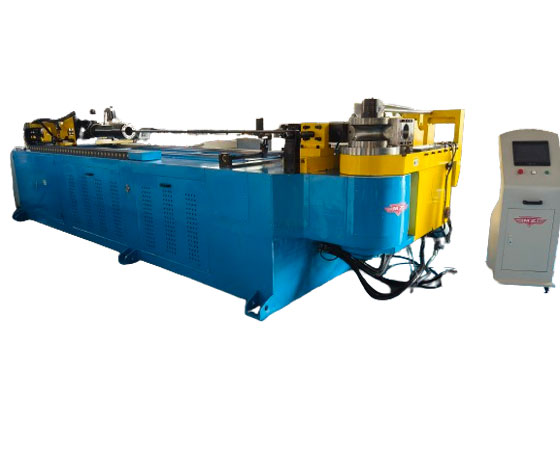

CNC Rectangular Tube Bending Machine

● CNC Control: Offers precise, automated bending with advanced CNC control for consistent results.

● Hydraulic Drive: Equipped with a hydraulic system for efficient and smooth operation.

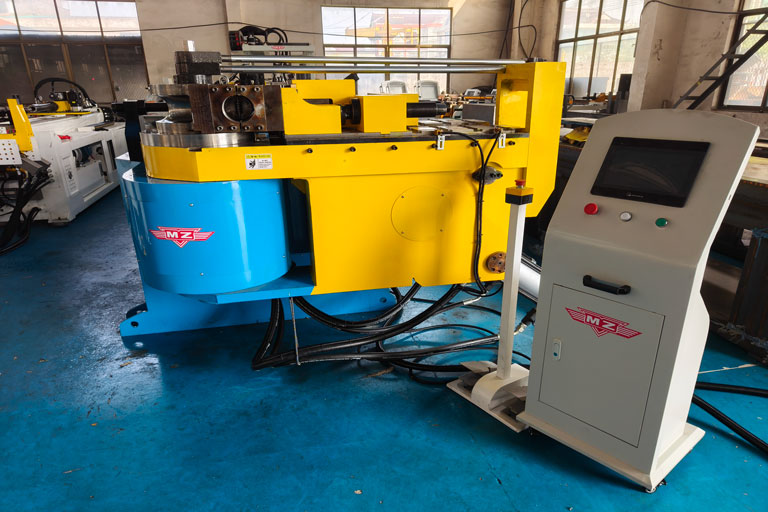

● Touch-Screen Interface: Easy-to-use touch-screen control with multi-language support.

● High Precision: Utilizes high-quality imported components for accurate bending and high productivity.

● Versatile Operation Modes: Supports manual, semi-automatic, and fully automatic modes for flexible usage.

● Wide Application: Ideal for large-scale production in industries like automotive, construction, and manufacturing.

Rectangular tube bending machine with PLC or IPC which manages Feeding (Y), Rotating (B) & Bending (C) in a complete automatic cycle.

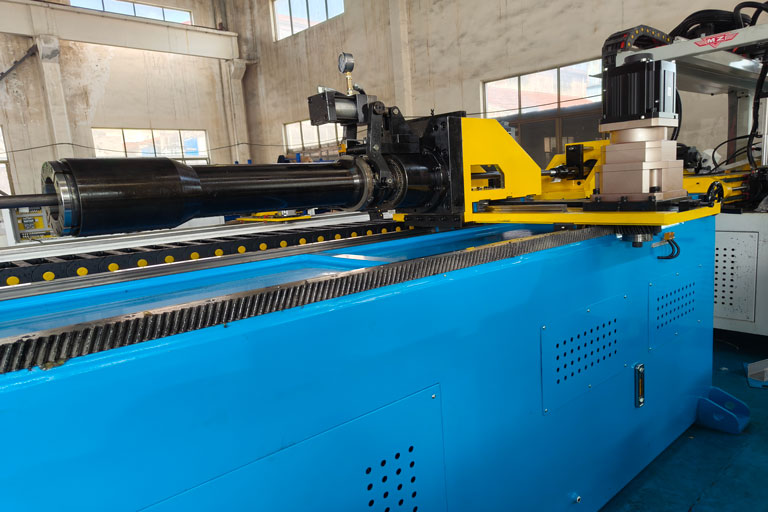

Feeding (Y-Axis): Controlled by Servo motor.

Feeding (Y-Axis) : Controlled by Servo motor.

Feeding (Y-Axis ) :Controlled by Servo motor.

Europe design structure with higher precision and speed. Keep the machine used for a long time.

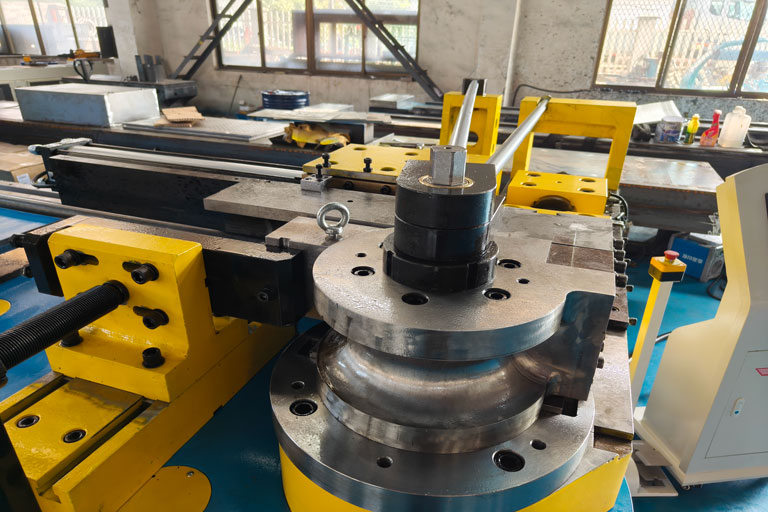

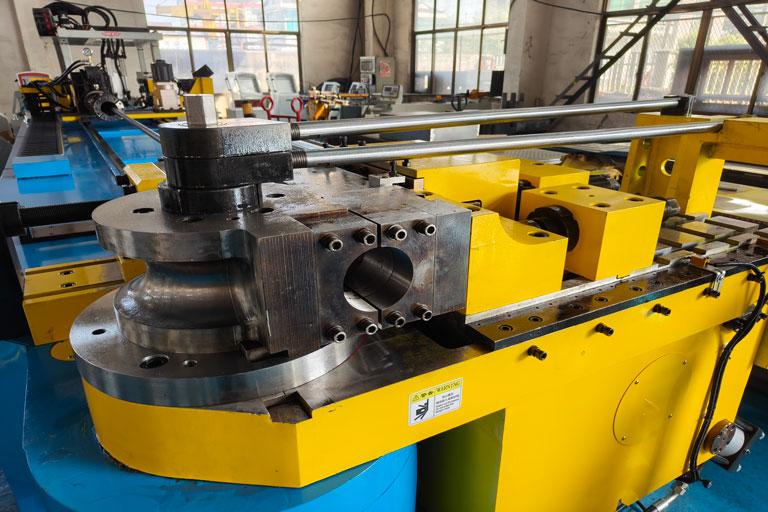

● Fully hydraulic movement on clamp die, pressure die, and mandrel.

● Available pipe material: steel, stainless, aluminum, titanium, and brass...

● Available pipe shape: Round, Square, Rectangle, Oval, Solid Bar, other profiles...

● Equipped with Japan Omron encoder ensures the accuracy and stability of bending.

We only use world-famous, popular-quality components in the production of our bending machinery: Japan Mitsubishi Servo, Hydraulic Germany Rexroth, Electrical France Schneider, Seal ring Japan NOK, CNC Controller Siemens or Japan Mitsubishi, and so on.

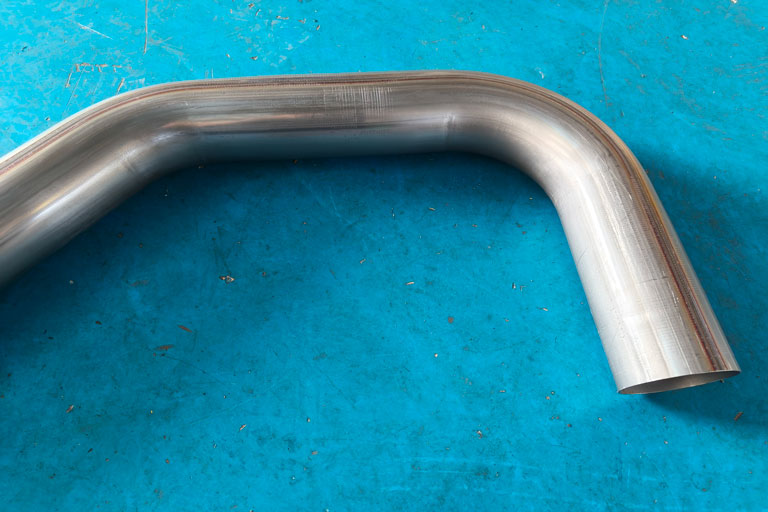

Our rectangular tube bending machine offers high precision, flexible processing capabilities, and superior surface finishing, meeting the diverse material and product requirements to ensure high-quality finished products.

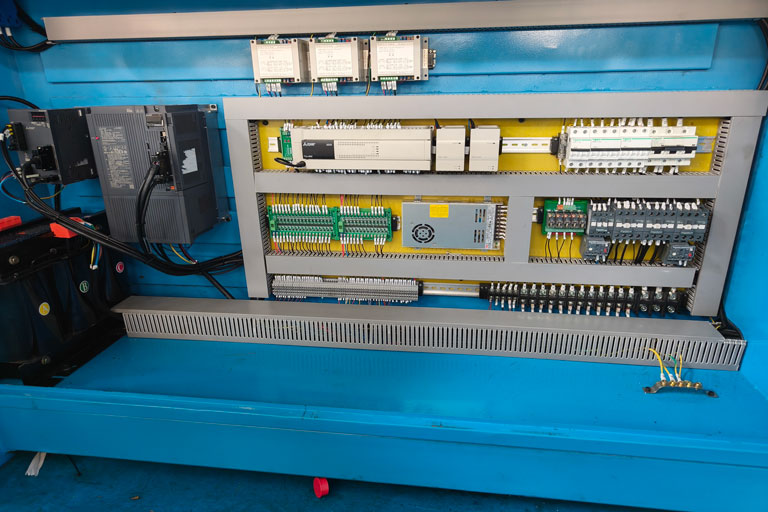

● The cabinet all the electrical parts use world-class brands, and the cabinet conforms to IP65.

● Conform to CE and UL standards

Specification

NO.	Name		Unit	Parameters	Mark
1	Max Processing Pipe Size		mm	Φ130×6t	Carbon steel
2	Max Bending radius		mm	R400
3	Min Bending radius		mm	According to OD
4	Max feeding length		mm	3000	Customized
5	Feeding method			1. Direct feeding 2. Clamping feeding	optional
6	Max bending angle		Degree	190
7	Using controller			PLC	optional
8	Number of bends per fitting		个	45
9	Working speed	bending	Deg/sec	20	adjustable
		rotating	Deg/sec	140	adjustable
		feeding	Mm/sec	500	adjustable
10	accuracy	feeding	mm	±0.1
		rotating	Degree	±0.1
		bending	Degree	±0.15
11	Rotating servo motor		Kw	3	Japan Mitsubishi
12	Feeding the servo motor		Kw	5	Japan Mitsubishi
13	Left and right touch servo motor power		Kw	2（2只）	Japan Mitsubishi
14	Data input mode			1、Coordinate value（X、Y、Z） 2、Working value（Y、B、C）
15	Hydraulic motor horsepower		Kw	22
16	Maximum pressure		MPa	16
17	Hydraulic system control			Solenoid directional valve	Taiwan's Seven Oceans
18	Fuel tank capacity		L	550
19	Machine weight		Kg	12000
20	Machine size		mm	6100×1860×1265
