CNC Automatic Copper Pipe Bending Machine | MZ75CNC-3A-3S

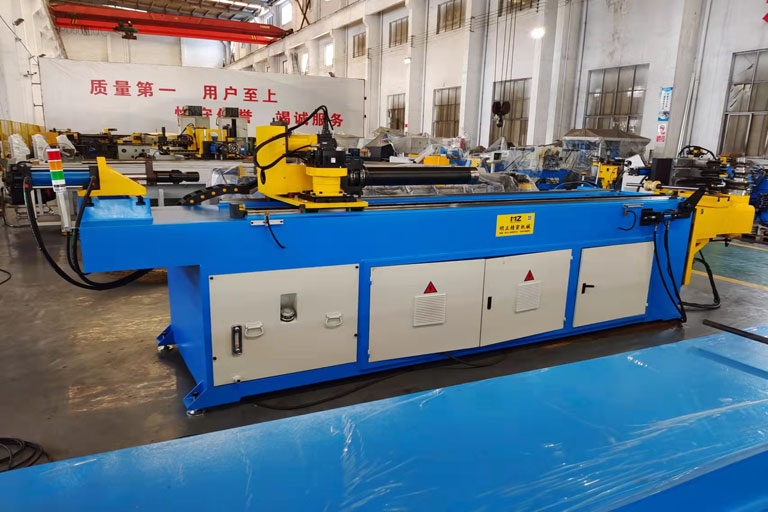

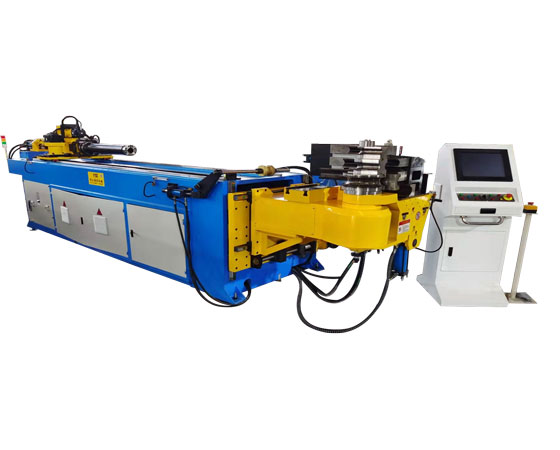

CNC Copper Pipe Bending Machine
● Dual Drive System: Combines servo and hydraulic drives for precise and efficient bending.
● Advanced Control: Centralized control of bending angle, feeding accuracy, and tube rotation for high precision.
● Hydraulic Coordination: Independent hydraulic cylinders for clamping, guiding, and mandrel, ensuring smooth, synchronized operation.
● Bending Versatility: Supports both mandrel and non-mandrel bending to handle various pipe shapes and materials.
● User-Friendly Design: Features jog and single-action modes, simplifying operation and maintenance.
● Industry Applications: Widely used in shipbuilding, boilers, chemicals, and automotive manufacturing.

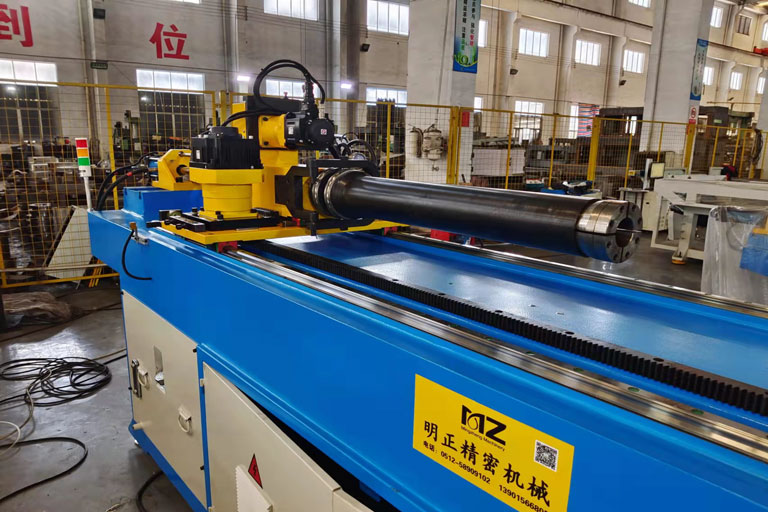

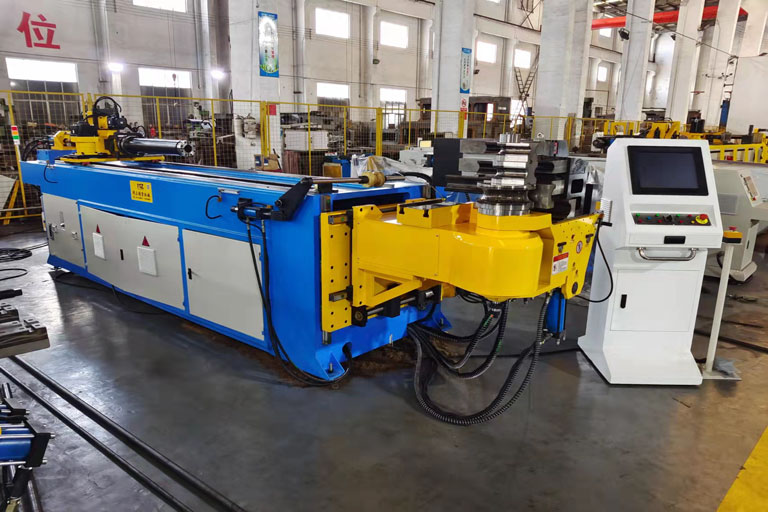

Copper pipe bending machine with PLC or IPC, which manages Feeding (Y), Rotating (B) & Bending (C) in a complete automatic cycle.

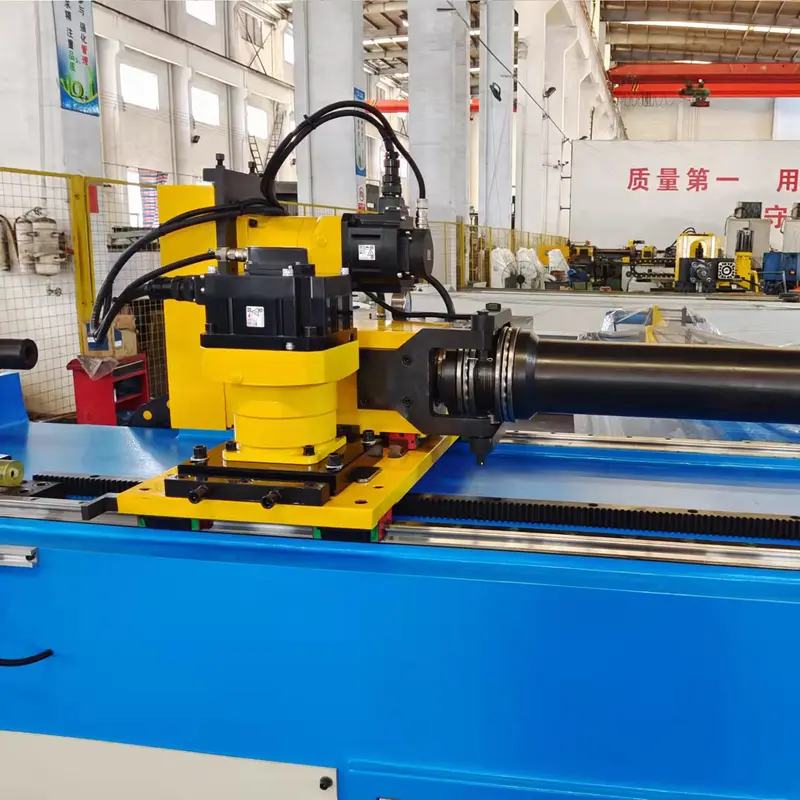

Feeding (Y-Axis): Controlled by Servo motor.
Feeding (Y-Axis): Controlled by Servo motor.
Feeding (Y-Axis): Controlled by Servo motor.
We only use world-famous, popular-quality components in the production of our bending machinery: Japan Mitsubishi Servo, Hydraulic Germany Rexroth, Electrical France Schneider, Seal ring Japan NOK, CNC Controller Siemens or Japan Mitsubishi, and so on.
Europe design structure with higher precision and speed. keep the machine used for a long time.

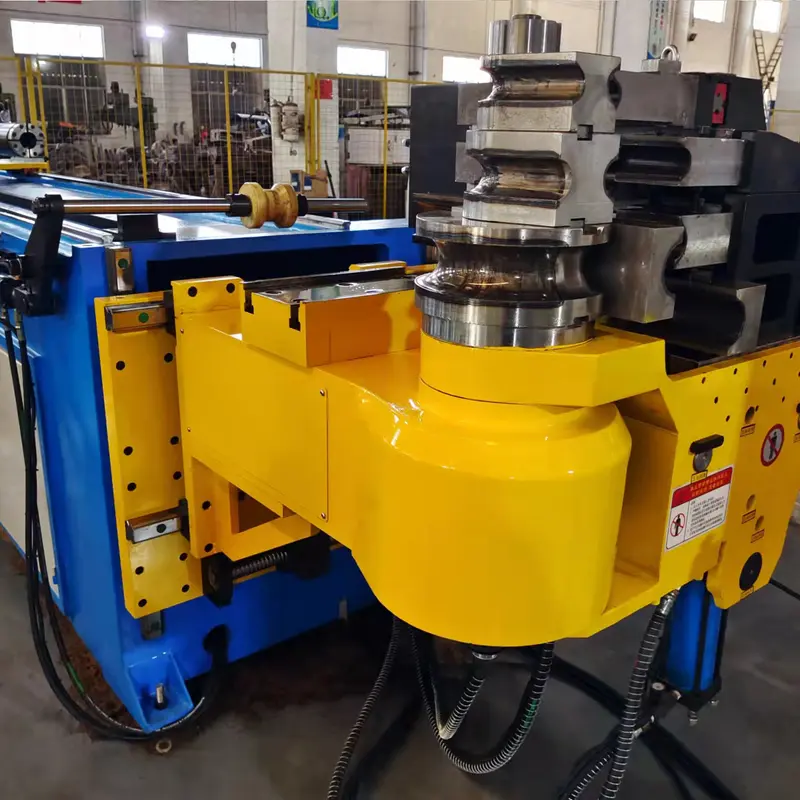

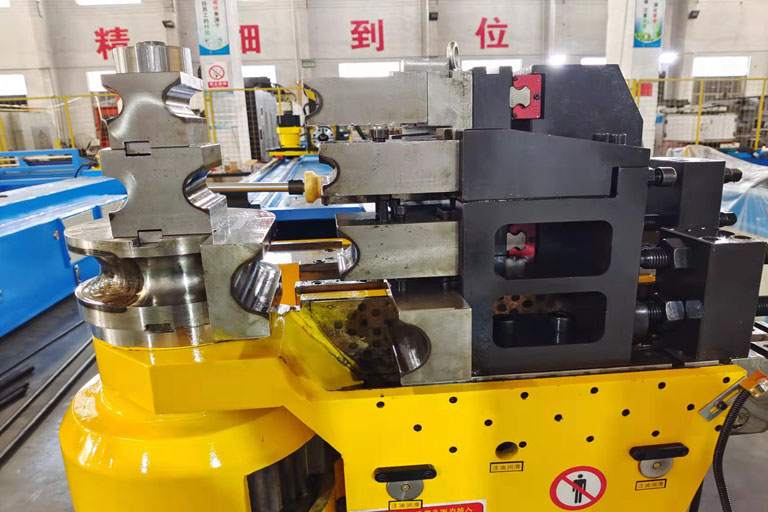

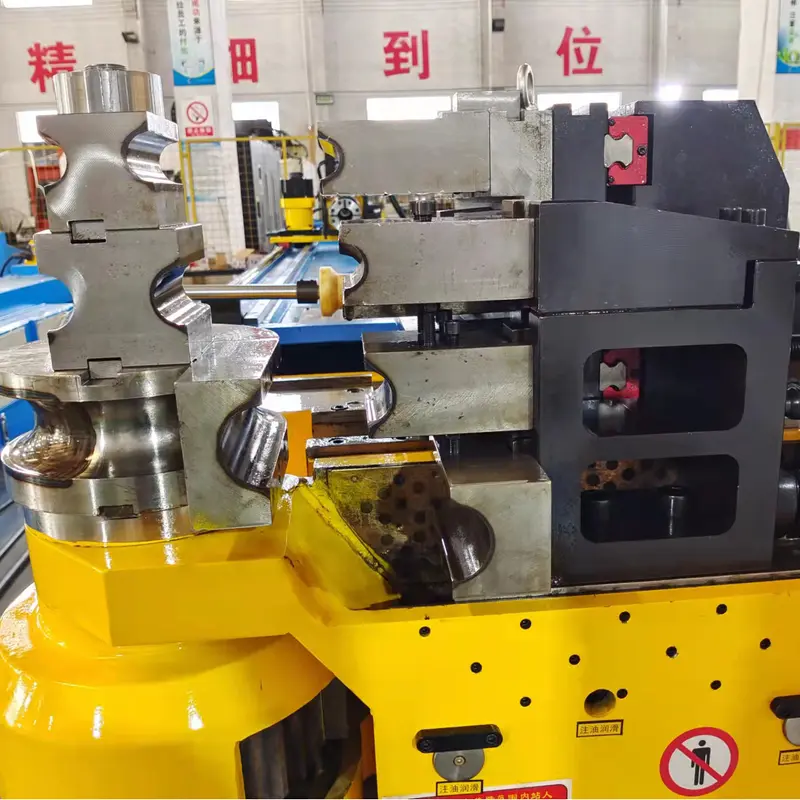

● Fully hydraulic movement on clamp die, pressure die, and mandrel.

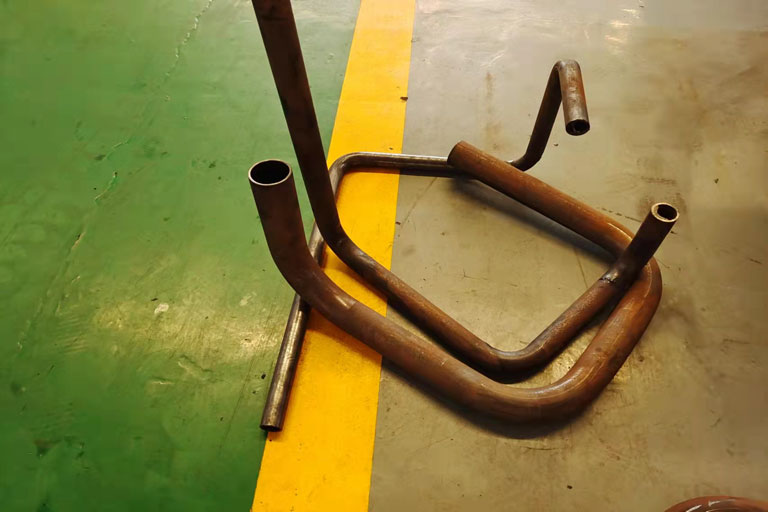

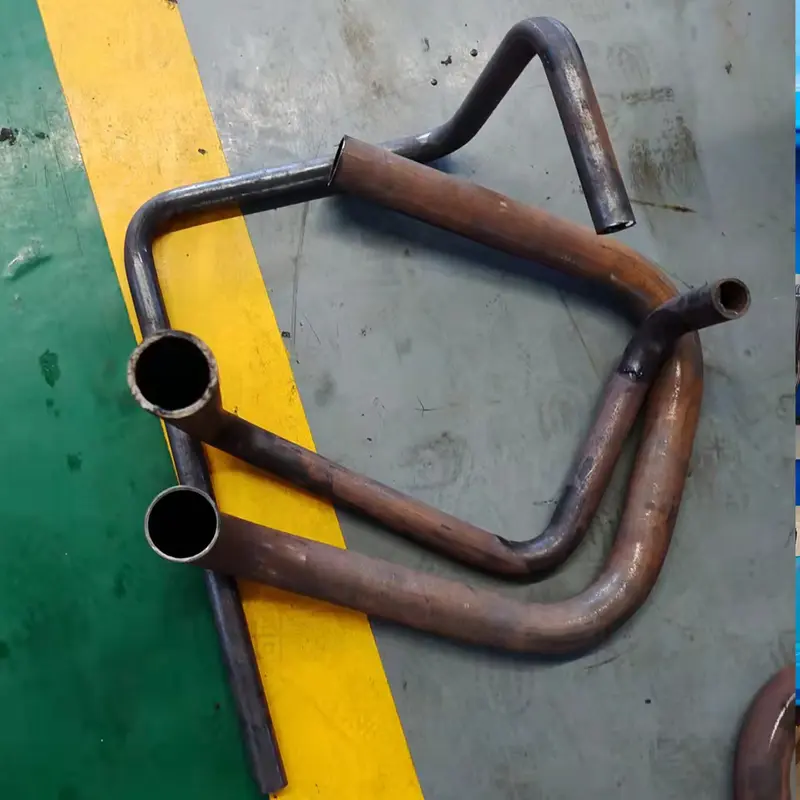

● Available pipe material: steel, stainless, aluminum, titanium, and brass...
● Available pipe shape: Round, Square, Rectangle, Oval, Solid Bar, other profiles...
● Equipped with Japan Omron encoder ensures the accuracy and stability of bending.

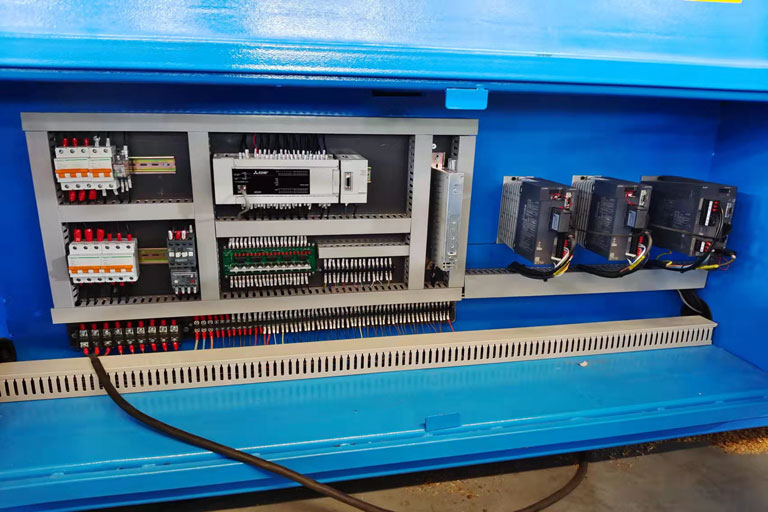

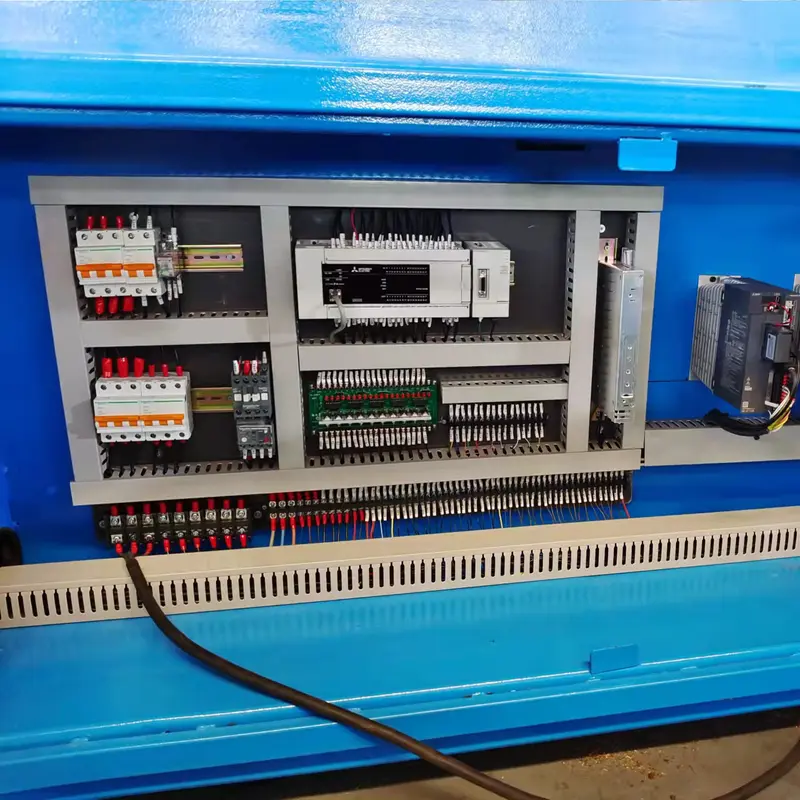

● The cabinet all the electrical parts use world-class brands, and the cabinet conforms to IP65.
● Conform to CE and UL standards
Specification
| NO. | Name | Unit | Parameters | Mark | |
| 1 | Max Processing Pipe Size | mm | Φ75×3t | Carbon steel | |
| 2 | Max bending radius | mm | R300 | Customized | |
| 3 | Min bending radius | mm | According to OP | ||
| 4 | Max feeding length | mm | 3000 | Customized | |
| 5 | Feeding method | 1. Direct feeding
2. Clamping feeding |
optional | ||
| 6 | Max bending angle | Degree | 190 | ||
| 7 | Using controller | PLC | Customized | ||
| 8 | Number of bends per fitting | 个 | 30 | ||
| 9 | Working speed | bending | Deg/sec | 70 | adjustable |
| rotating | Deg/sec | 100 | adjustable | ||
| feeding | Mm/sec | 600 | adjustable | ||
| 10 | accuracy | feeding | mm | ±0.1 | |
| rotating | Degree | ±0.1 | |||
| bending | Degree | ±0.1 | |||
| 11 | Rotating servo motor | W | 1 | Mitsubishi | |
| 12 | Feeding servo motor | Kw | 2 | Mitsubishi | |
| 13 | Horizontal servo motor power conversion | Kw | 2 | Mitsubishi | |
| 14 | Data input mode | 1、Coordinate value（X、Y、Z）
2、Working value（Y、B、C） |
optional | ||
| 15 | Hydraulic motor horsepower | Kw | 7.5 | ||
| 16 | Maximum pressure | MPa | 14 | adjustable | |
| 17 | Hydraulic system control | solenoid directional valve | Taiwan Haitek | ||
| 18 | Fuel tank capacity | L | 250 | ||
| 19 | Machine weight | Kg | 6500 | ||
| 20 | Machine size | cm | 820×1350×1230 | ||
