The steel tube bending machine uses servo and hydraulic drives for precise, high-quality bending of metal pipes, with independent hydraulic control for clamping, guiding, and mandrel operations, widely used in industries like shipbuilding, boilers, and automotive manufacturing.

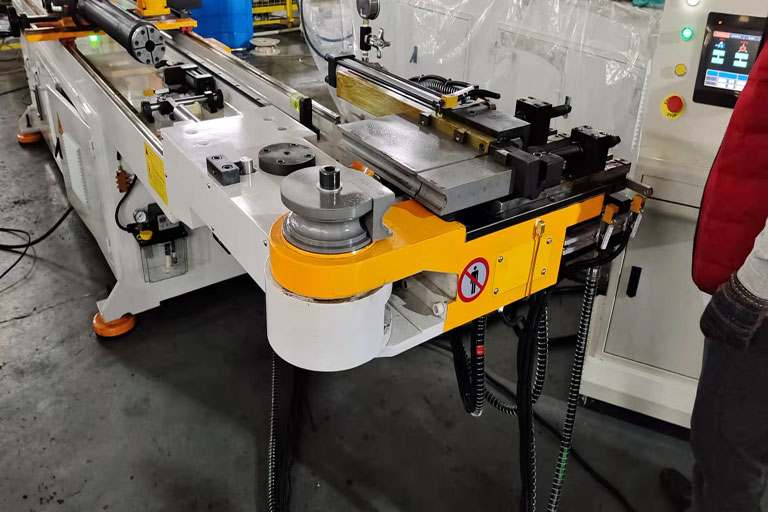

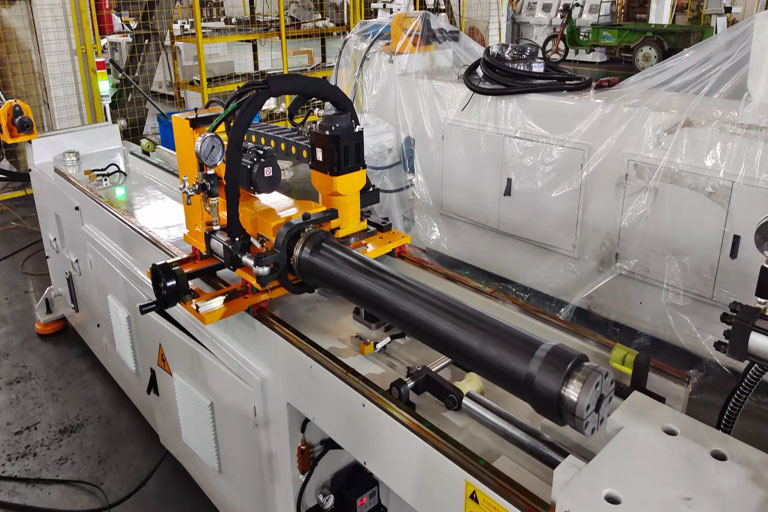

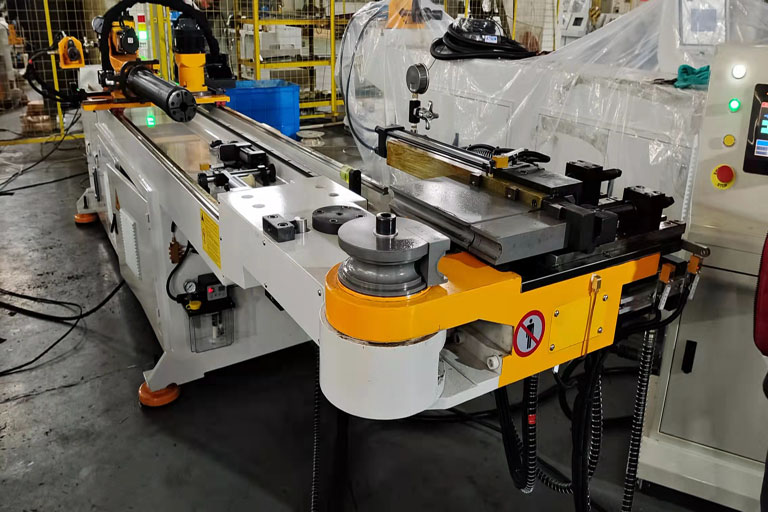

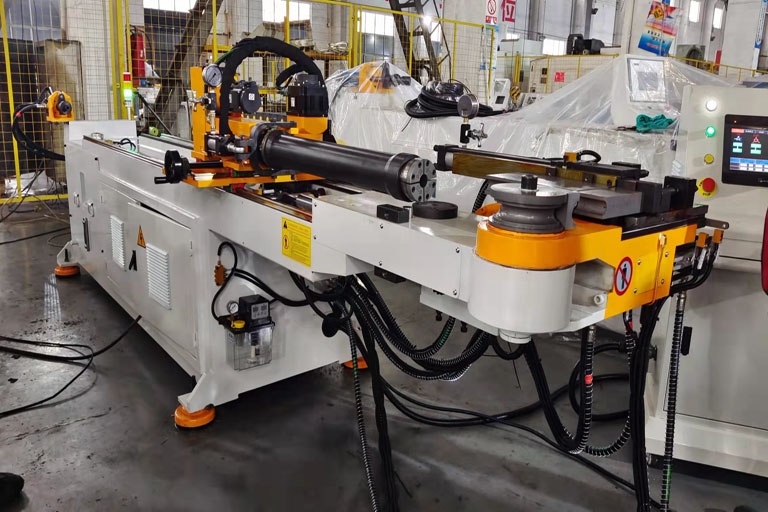

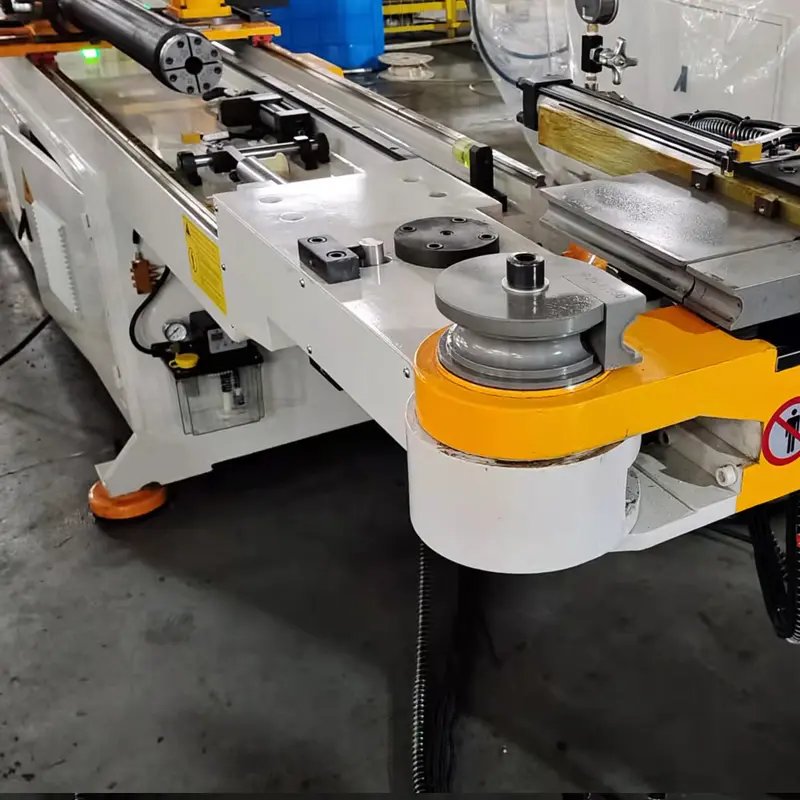

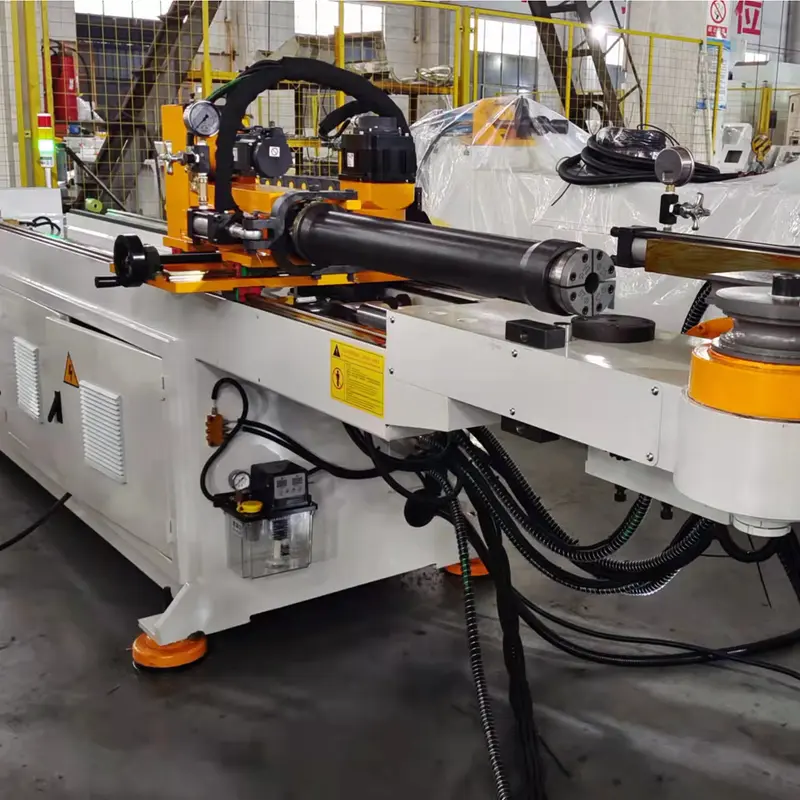

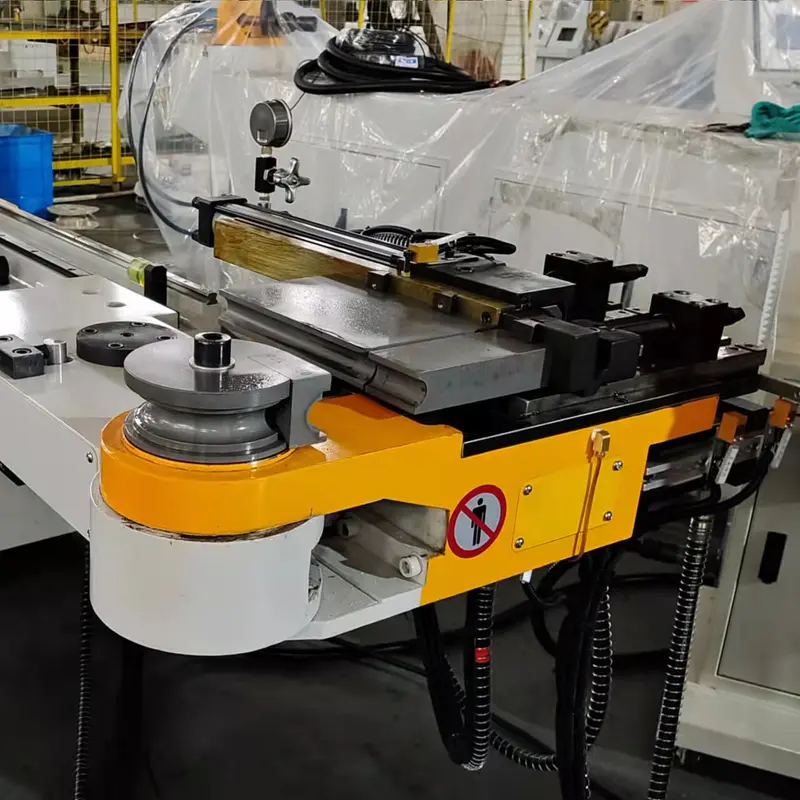

CNC Small Diameter Pipe Bender

● Drive System: Servo and hydraulic drive for precise operation.

● Electrical Control: Centralized control of bending angle, feeding accuracy, and tube rotation.

● Hydraulic Control: Independent cylinders for clamping, guiding, mandrel, and die changes, ensuring synchronized operation for high-quality bending.

● Bending Versatility: Supports both mandrel and non-mandrel bending for different pipe types.

● Ease of Use: Jog and single-action modes for simple operation and easy maintenance.

● Wide Application: steel tube bending machine for industries like shipbuilding, boilers, chemicals, and automotive manufacturing.

Steel tube bending machine with PLC or IPC which manages Feeding (Y), Rotating (B) & Bending (C) in a complete automatic cycle.

Fully hydraulic movement on the clamp die, pressure die, and mandrel.
Available pipe material: steel, stainless, aluminum, titanium, and brass...
Available pipe shapes: Round, Square, Rectangle, Oval, Solid Bar, and other profiles...
Equipped with a Japan Omron encoder ensures the accuracy and stability of bending.

Only use world-famous popular quality components in the production of our steel tube bending machine: Japan Mitsubishi Servo, Hydraulic Germany Rexroth, Electrical France Schneider, Seal ring Japan NOK, CNC Controller Siemens or Japan Mitsubishi, and so on.

Europe design structure with higher precision and speed. Keep the machine used for a long time.

Specification

NO.	Name		Unit	Parameters	Mark
1	Max Processing Pipe Size		mm	Φ38×2t	Carbon steel
1	Max Processing Pipe Size		mm	Φ25×1.6t	Stainless steel
2	Bending radius		mm	R180
3	Max feeding length		mm	2200	Can be customized
4	Feeding method			1. Direct feeding 2. Clamping feeding	Optional
5	Max bending angle		Degree	190
6	Using controller			PLC
7	Number of bends per fitting		个	30
8	Working speed	bending	Deg/sec	100	8
		rotating	Deg/sec	200
		feeding	Mm/sec	1000
9	accuracy	feeding	mm	±0.1	9
		rotating	Degree	±0.1
		bending	Degree	±0.1
10	Rotating servo motor		W	750	Mitsubishi
11	Feeding the servo motor		W	1000	Mitsubishi
12	Bending servo motor		W	5000	Mitsubishi
13	Data input mode			1、Coordinate value（X、Y、Z） 2、Working value（Y、B、C）	Optional
14	Hydraulic motor horsepower		Kw	4
15	Maximum pressure		MPa	12	adjustable
16	Hydraulic system control			Solenoid directional valve	Taiwan's Seven Oceans
17	Fuel tank capacity		L	150
18	Machine weight		Kg	1500
19	Machine size		cm	78×95×131
