CNC Round/Square Tube Bender For Metal | MZ90CNC-2A-1S

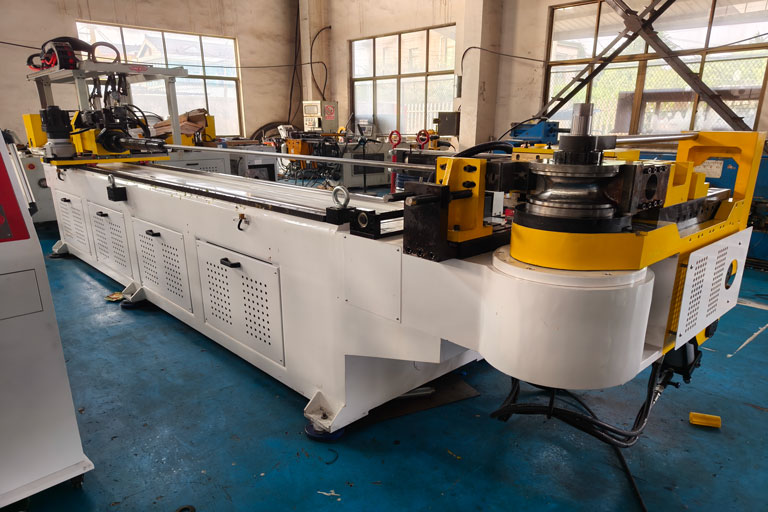

CNC Round/Square Tube Bender For Metal Tube Machine
● Multiple Operation Modes: Supports manual, semi-automatic, and automatic modes to meet various production needs.
● High-Precision Control: Equipped with a CNC control system to ensure high bending accuracy and minimal error.
● Hydraulic Drive: A powerful hydraulic drive system enables efficient and stable bending operations.
● Multi-Angle Bending: Capable of multi-angle bending to accommodate the production of complex pipe shapes.
● Efficient Production: Ideal for batch production, widely used in automotive, shipbuilding, chemical, and boiler industries.

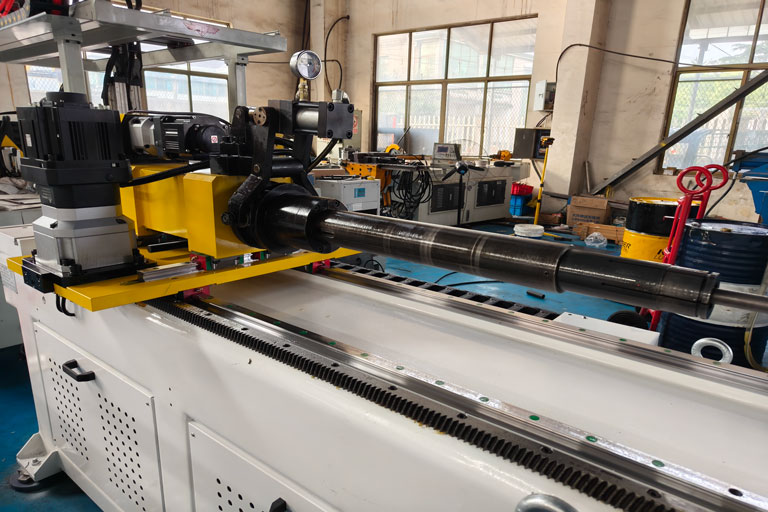

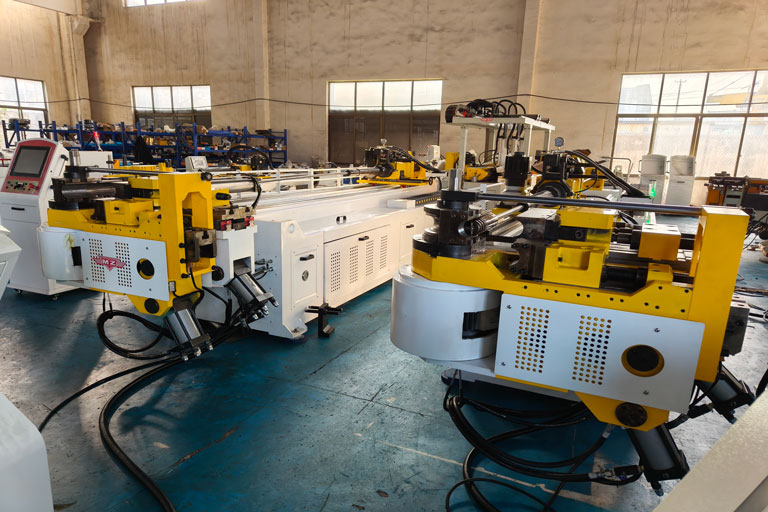

CNC tube bender with PLC or IPC which manages Feeding (Y), Rotating (B) & Bending (C) in a complete automatic cycle.

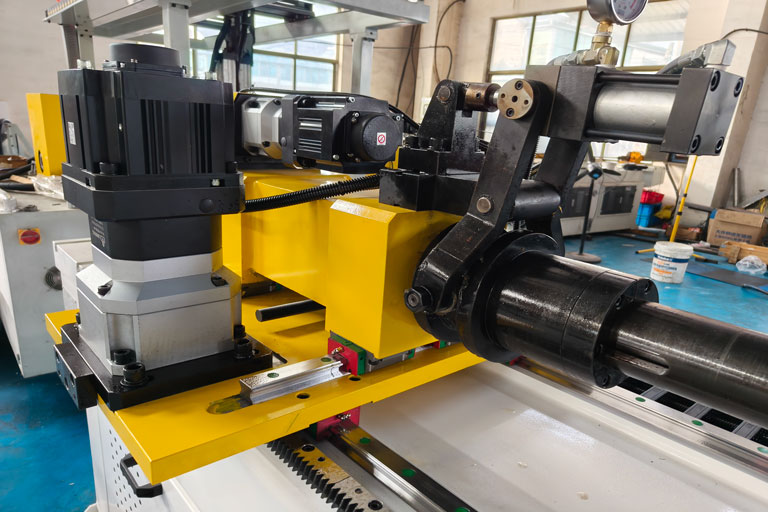

Feeding (Y-Axis): Controlled by Servo motor.
Feeding (Y-Axis): Controlled by Servo motor.
Feeding (Y-Axis): Controlled by Servo motor.
The hydraulic and pneumatic drive system of the China pipe bending machine is responsible for powering the movement and bending of pipes. Through connected hydraulic or pneumatic cylinders, it delivers the necessary force for precise pipe processing during bending operations.
We only use world-famous, popular-quality components in the production of our china pipe bending machine: Japan Mitsubishi Servo, Hydraulic Germany Rexroth, Electrical France Schneider, Seal ring Japan NOK, CNC Controller Siemens or Japan Mitsubishi, and so on.

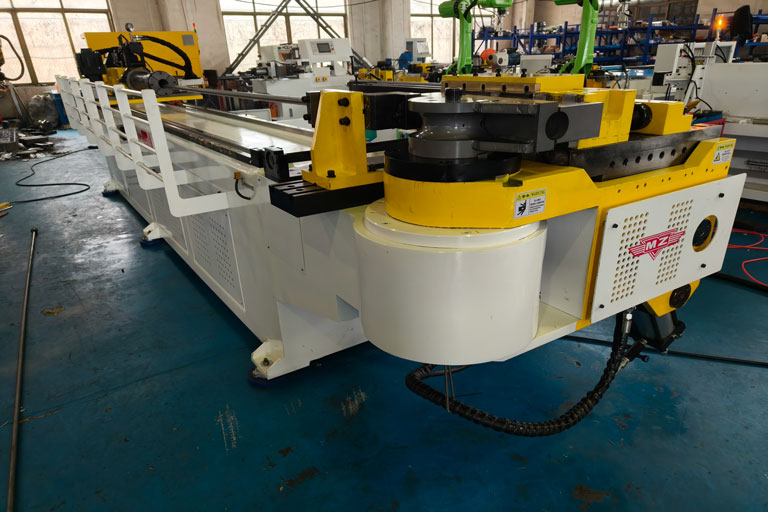

Europe design structure with higher precision and speed. Keep the machine used for a long time.

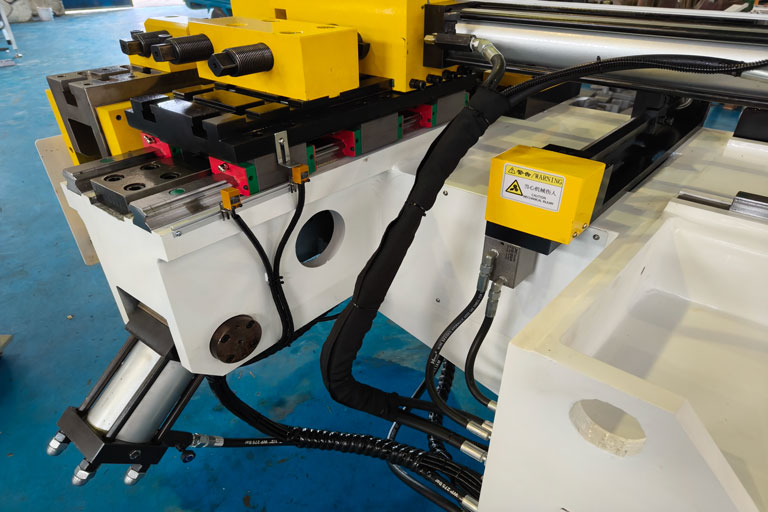

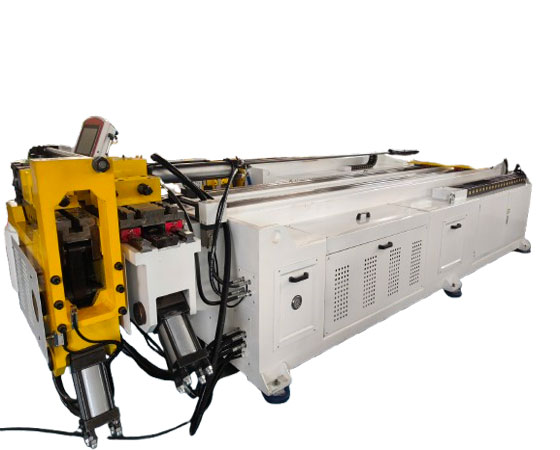

● Fully hydraulic movement on clamp die, pressure die, and mandrel.
● Available pipe material: steel, stainless, aluminum, titanium, and brass...
● Available pipe shapes: Round, Square, Rectangle, Oval, Solid Bar, and other profiles.
● Equipped with a Japan Omron encoder, which ensures the accuracy and stability of bending.
● The cabinet all the electrical parts use world-class brands, and the cabinet conforms to IP65.
● Conform to CE and UL standards

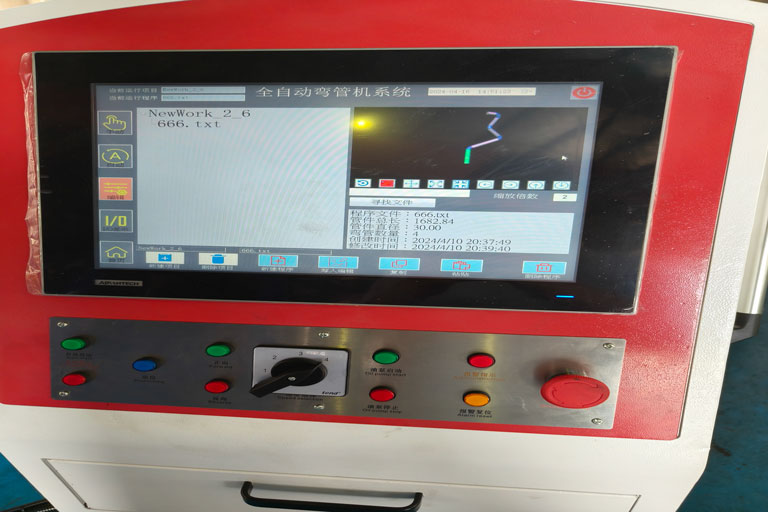

● Industry computer(IPC) touch screen 10inch/15inch offers easy access to automatic and manual operating modes.
● System diagnostics and multiple language capability.
● Fully hydraulic clamping on the clamp die and the pressure die.
● Equipped with an adjustable speed valve on the pressure die ensures the synchronization of bending.
● 3D Simulation Function and Drawing Transfer Function
Wifi connection and remote monitoring

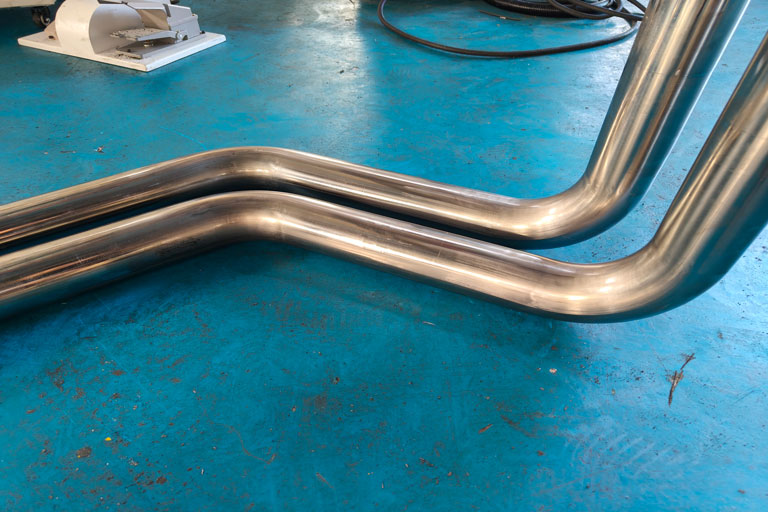

Our CNC tube bender machine offers high precision, flexible processing capabilities, and superior surface finishing, meeting the diverse material and product requirements to ensure high-quality finished products.
Specification
| NO. | Name | Unit | Parameters | Mark | |
| 1 | Max Processing Pipe Size | mm | Φ89×6t | Carbon steel | |
| 2 | Max Bending radius | mm | R300 | ||
| 3 | Minimum bending radius | mm | According to OD | ||
| 4 | Max feeding length | mm | 3000 | Customized | |
| 5 | Feeding method | 1. Direct feeding
2. Clamping feeding |
optional | ||
| 6 | Max bending angle | Degree | 190 | ||
| 7 | Using controller | PLC | optional | ||
| 8 | Number of bends per fitting | 30 | |||
| 9 | Working speed | bending | Deg/sec | 40 | adjustable |
| rotating | Deg/sec | 160 | adjustable | ||
| feeding | Mm/sec | 550 | adjustable | ||
| 10 | accuracy | feeding | mm | ±0.1 | |
| rotating | Degree | ±0.1 | |||
| bending | Degree | ±0.1 | |||
| 11 | Rotating servo motor | Kw | 1.5 | Japan Mitsubishi | |
| 12 | Feeding the servo motor | Kw | 2 | Japan Mitsubishi | |
| 13 | Data input mode | 1、Coordinate value（X、Y、Z）
2、Working value（Y、B、C） |
optional | ||
| 14 | Hydraulic motor horsepower | Kw | 11 | ||
| 15 | Maximum pressure | MPa | 14 | adjustable | |
| 16 | Hydraulic system control | Solenoid directional valve | Taiwan's Seven Oceans | ||
| 17 | Fuel tank capacity | L | 450 | ||
| 18 | Machine weight | Kg | 约5000 | ||
| 19 | Machine size | mm | 5500×1350×1360 | ||
