The aluminum tube bending machine features a touch-screen control system, servo-hydraulic drive, and high-reliability imported components, enabling precise, efficient, and automated 3D pipe bending for mass production with stable performance and user-friendly operation.

CNC Aluminum Tube Bending Machine

● High Precision Bending: Achieves accurate bending angles with servo-hydraulic control for consistent results.

● Advanced Control System: Touch-screen interface with multi-language support for easy operation and programming.

● Bending Versatility: Supports mandrel and non-mandrel bending, handling various tube shapes and sizes.

● Automated Operation: Offers manual, semi-automatic, and fully automatic modes to suit different production needs.

● Durable & Reliable Components: Equipped with high-reliability imported parts for stable performance and long-term use.

● Wide Application: Suitable for industries like automotive, shipbuilding, chemical, and boiler manufacturing.

Aluminum tube bending machine with PLC or IPC which manages Feeding (Y) ,Rotate (B) & Bending (C) in a complete automatic cycle.

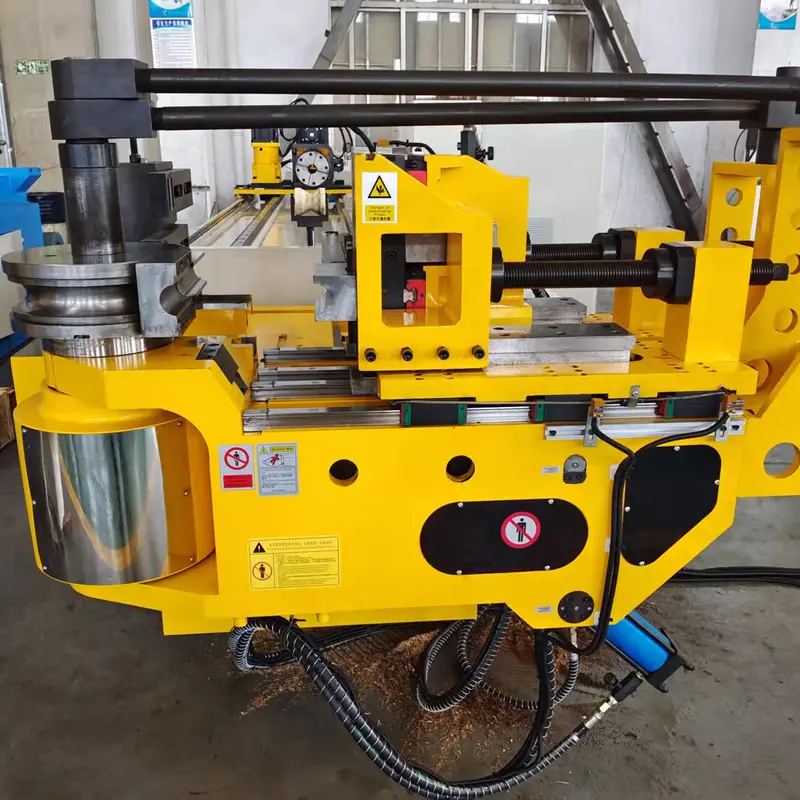

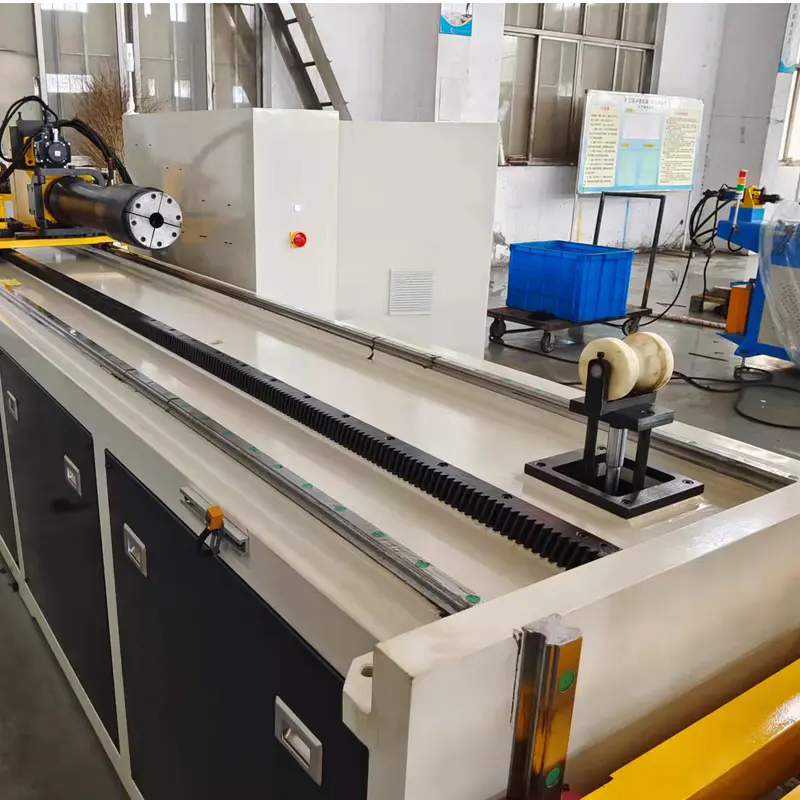

Feeding (Y-Axis): Controlled by Servo motor.

● Fully hydraulic movement on clamp die, pressure die, and mandrel.

● Available pipe material: steel, stainless, aluminum, titanium, and brass...

● Available pipe shapes: Round, Square, Rectangle, Oval, Solid Bar, and other profiles.

● Equipped with Japan Omron encoder ensures the accuracy and stability of bending.

Ensure efficient and precise operation during the bending process to meet various processing needs.

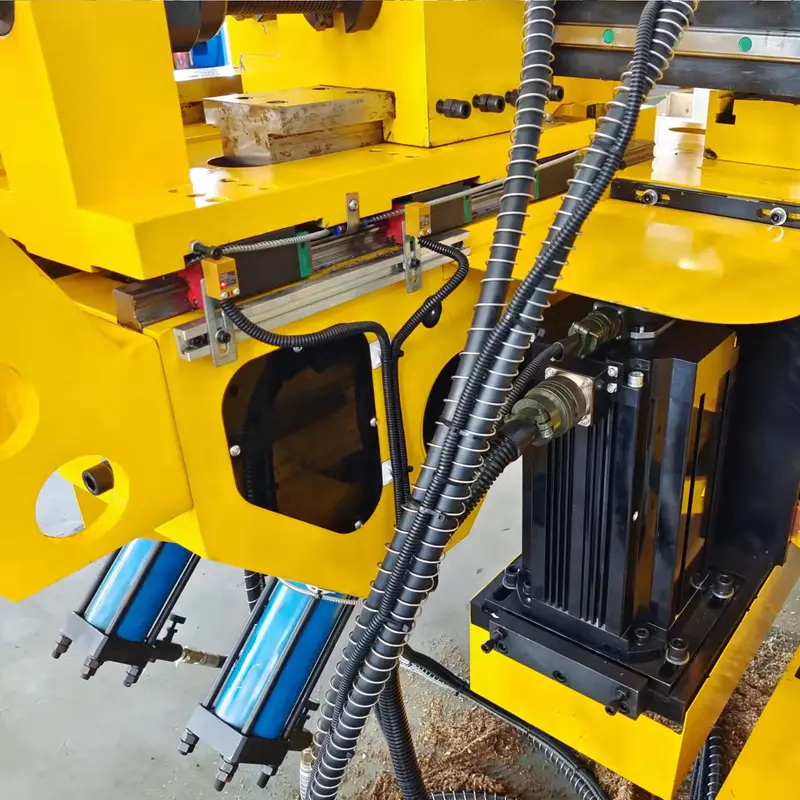

The hydraulic and pneumatic drive system of the aluminum tube bending machine is responsible for powering the movement and bending of pipes. Through connected hydraulic or pneumatic cylinders, it delivers the necessary force for precise pipe processing during bending operations.

Europe design structure with higher precision and speed. keep the machine used for a long time.

We only use world-famous, popular-quality components in the production of our bending machinery: Japan Mitsubishi Servo, Hydraulic Germany Rexroth, Electrical France Schneider, Seal ring Japan NOK, CNC Controller Siemens or Japan Mitsubishi, and so on.

Specification

NO.	Name		Unit	Parameters	Mark
1	Max Processing Pipe Size		mm	Φ89×5t	Carbon steel
2	Max Bending radius		mm	R300
3	Min Bending radius		mm	1.5D
4	Maximum radius difference		mm	120	Customized
5	Max feeding length		mm	3000	Customized
6	Feeding method			1. Direct feeding 2. Clamping feeding	optional
7	Max bending angle		Degree	190
8	Using controller			IPC	optional
9	Number of bends per fitting		个	45
10	Working speed	bending	Deg/sec	90	adjustable
		rotating	Deg/sec	180	adjustable
		feeding	Mm/sec	700	adjustable
11	accuracy	feeding	mm	±0.1
		rotating	Degree	±0.1
		bending	Degree	±0.1
12	Rotating servo motor		Kw	2	Japan Mitsubishi
13	Feeding servo motor		Kw	3.5	Japan Mitsubishi
14	Bending servo motor		Kw	15	Japan Mitsubishi
15	Horizontal touch servo motor power		Kw	2	Japan Mitsubishi
18	Data input mode			1、Coordinate value（X、Y、Z） 2、Working value（Y、B、C）	optional
19	Hydraulic motor horsepower		Kw	11
20	Maximum pressure		MPa	14	adjustable
21	Hydraulic system control			solenoid directional valve	Taiwan's Seven Oceans
22	Fuel tank capacity		L	350
23	Machine weight		Kg	9000
24	Machine size		mm	5800×1700×1400
